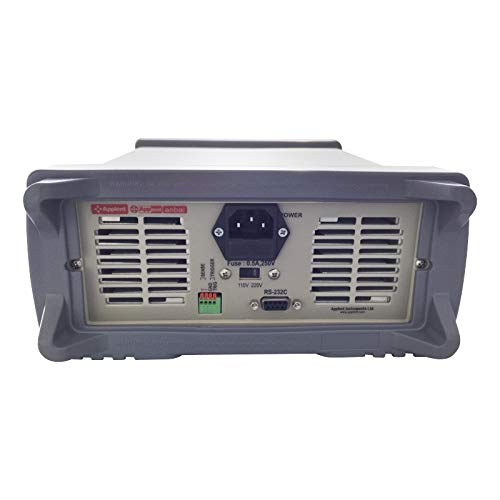

AT851 Digital Battery Lifetime Meter Test Battery Capacity

AT851 battery aging meter can be widely used for battery capacity measurement, li-battery, aging of NI-NH battery, charger, switch power supply and aging of linear power supply. Can meet battery factories’ requirements of testing various kinds of batteries and national standard battery lifetime testing function. AT851 has an independent electronic load that provides CC,CV,CP and CP working models. It supports the latest USB communication and traditional RS232C interfaces. SCPI makes computer programming easier. Battery charge-discharge professional evaluation instrument SPECIFICATIONS AT851 Battery Aging Meter Rated Input300W, 120V, 30A CC0 ~ 3A, Resolution: 0.0001A; Accuracy: 0.05% 0 ~ 30A, Resolution: 0.001A; Accuracy: 0.1% CV0 ~ 18V, Resolution 0.001V; Accuracy: 0.05%, 0 ~ 120V, Resolution 0.01V; Accuracy: 0.05%, CP0 ~ 100W, Resolution: 0.001W; Accuracy: 1%, ＞100W, Resolution: 0.01W; Accuracy: 1% CR0.1 ~ 99Ω, Resolution: 0.01Ω；Accuracy: 1% 100 ~ 4kΩ, Resolution: 0.1Ω；Accuracy: 1% Monitoring Voltmeter accuracy:0.02%; ammeter accuracy: 0.1%; battery charging time: 0 - 1000 hours; battery power check: 0 - 999AH, battery rest time: 0 - 1000 hours; battery cycle times: 1 - 10000 times; speed: 3 times/second, 10 times/times Short-circuit TestCurrent about 30A, the internal resistance of about 40mΩ Transition10 files, 0.1Hz ~ 1kHz List Test10 documents, 100 steps / file Test file10 files, 20 steps / file TriggerInternal, BUS trigger, External, InterfaceRS232 and handler interface Programmable LanguageSCPI and simple communication protocol ProtectionLevel 5 safety protection OthersVFD display, 4W remote sensing capability, intelligent cooling GENERAL FEATURES Power SupplyVoltage: 220V AC Frequency: 50Hz Power: 20VA (Max) Size216mm (Width)*88mm (Height)*300mm (Depth) 5kg ORDERING INFORMATION AccessoryATL509A test clip, communication cable

• battery charging and discharging meter, battery capacity meter, battery aging tester
