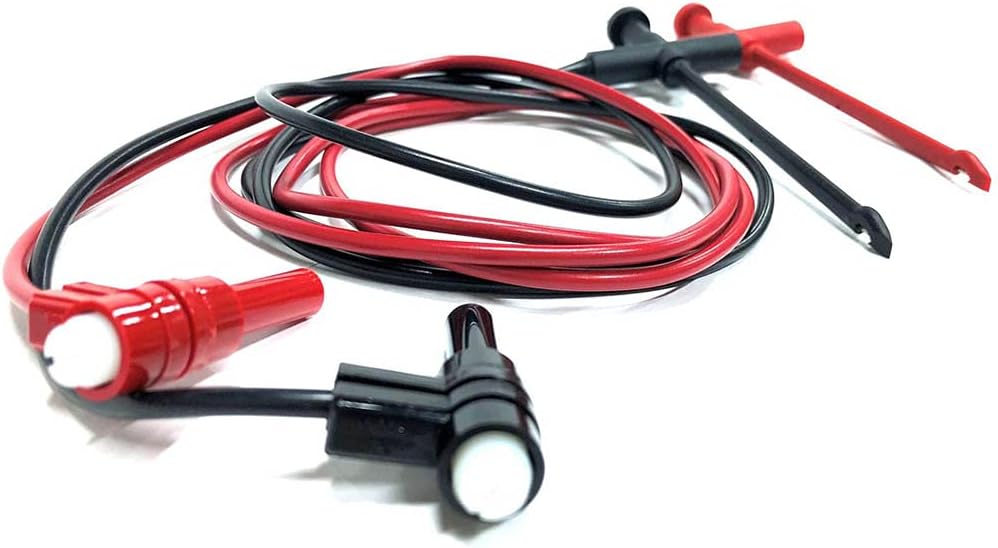

E-Z-HOOK Multimeter Test Lead - Insulation-Piercing Macro-Hook Adapter to Standard Banana Plug (4mm) (18 AWG PVC - 48" Long) - Set of 2: Red, Black (633XEL-48R/B)

The 633XEL test lead features an insulation-piercing heavy-duty macro-hook adapter to a standard shrouded right-angle male banana plug. The XEL offers a shrouded banana plug socket for additional test lead connections to test multiple components at the same time acting as a continuous jumper. The needle on the test hook contact blade pierces a wires insulation to make direct and instant contact to the wire conductor; this provides quick and accurate results. A small incision is left upon removal of needle for long-lasting use. Commonly used in applications where reaching the ends of wire is difficult or in delicate environments when stripping and cutting wire is not recommended. These test leads each utilize 48 inches of 18 AWG PVC wire. This is a test lead set of 2 (1 red, 1 black).

• Connector #1: heavy-duty insulation-piercing macro-hook (E-Z-Macro-Hook) with a standard banana socket. Housing material is molded nylon and piercing needle and spring are stainless steel. Total hook length is 5.68 inches (144.22 mm).
• Insulation-piercing needle on the contact blade pierces most 14-28 AWG wire or a max wire diameter of 0.15 inches. Banana socket (jack) accepts/connects to a standard (4 mm) shrouded or unshrouded male banana plug.
• Banana plug accepts/connects to a standard (4 mm) female banana socket (jack).
• These test leads each utilize 48 inches of 18 AWG PVC (Polyvinyl Chloride) wire. This is a set of 2 assorted colors: black and red. Commonly used in conjunction with a digital multimeter (DMM) for electrical measurements and diagnostic testing.
