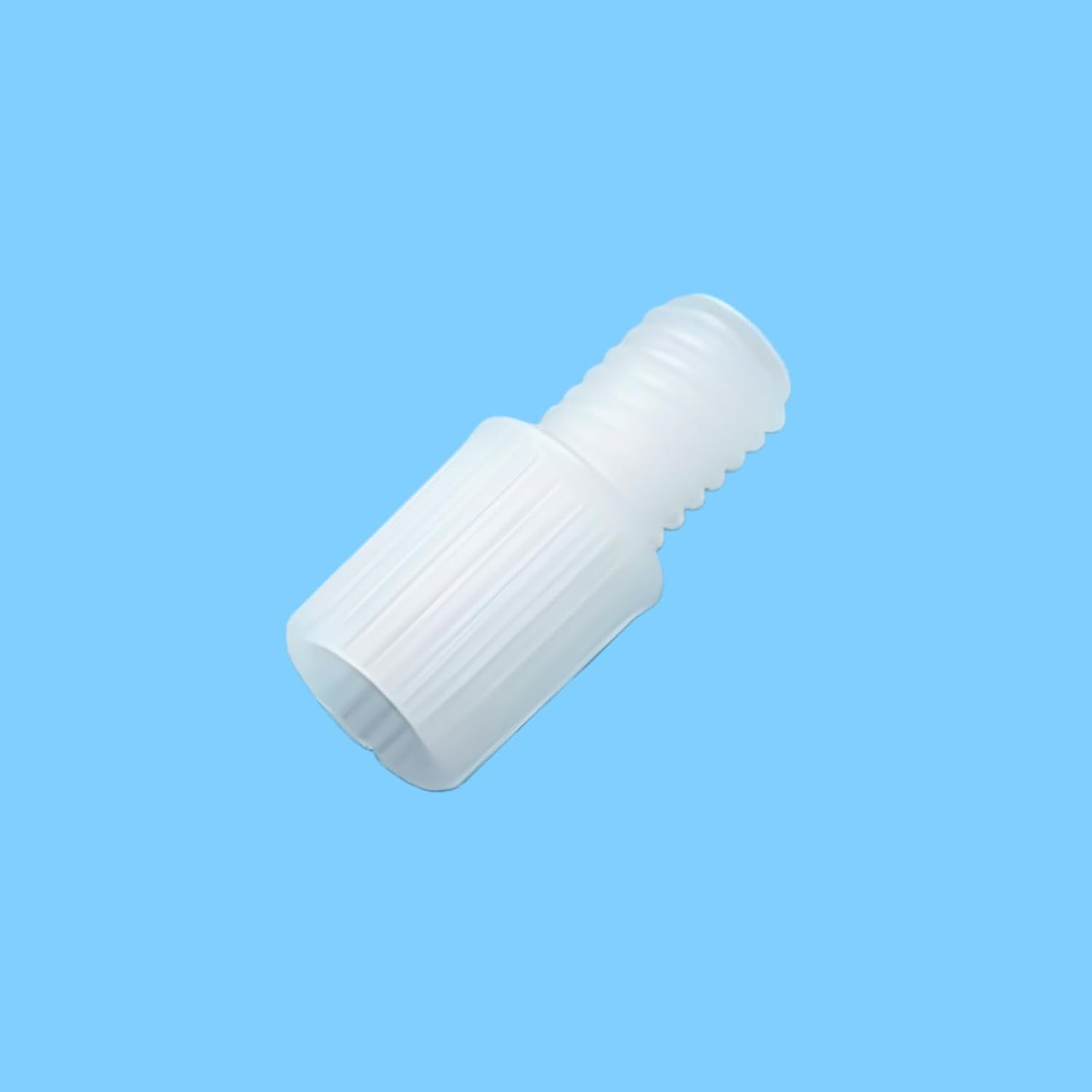

Super Flangeless Fittings, Standard Knurl, Short, Natural PEEK/PVDF/PP, 1/16 in or 1/8 in OD Tubing, 1/4-28 or M6 Flat Bottom Male Threaded 10/PK (PP, for 2.0-3.2mm, 1/4-28UNF)
Product details
| Management number | 210885811 | Release Date | 2026/04/04 | List Price | $12.80 | Model Number | 210885811 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications:Model: Flangeless FittingsFor Tube OD (mm): 1.6, 2.0-3.2Color: Clear, NaturalFitting Material: PP, PVDF, PEEKThreadsize: 1/4-28UNF / M6 Flat Bottom Male ThreadedPackage: 10/PKFeatures:1.Exceptional Material Selection:PP (Polypropylene): Offers an excellent cost-performance ratio, good chemical resistance, and mechanical toughness, suitable for most standard pneumatic and liquid applications.PVDF (Polyvinylidene Fluoride): Features outstanding chemical corrosion resistance, high purity, and UV resistance, making it ideal for applications involving chemicals, high-purity water, or outdoor environments.PEEK (Polyetheretherketone): A top-tier engineering plastic featuring exceptional mechanical strength, outstanding high-temperature resistance (continuous use up to 250°C+), and creep resistance for the most demanding high-temperature, high-pressure environments.2.Wide Compatibility:Thread Options: Available in 1/4-28 UNF (American Unified Fine Thread) and M6 (Metric Thread) standards, easily matching most pneumatic valves, cylinders, manifolds, and equipment interfaces.Compatible Tubing: Optimized for rigid tubing with outer diameters of 1.6mm, 2.0mm, 2.5mm, 3.0mm, and 3.2mm, such as PTFE (Teflon) tubing, polyimide tubing, and metal tubing. Ensure tubing outer diameter is measured before use to select the correct model.Applications:Industrial automation pneumatic circuits, laboratory analytical instrumentation (e.g., chromatographs) tubing connections, semiconductor equipment cooling water systems, 3D printer hot-end cooling, medical device fluid transfer, automotive test harnesses, and all scenarios requiring leak-free, high-reliability rigid tubing connections.
- 【Material Options】Offers PP (economical and durable), PVDF (high chemical resistance), and PEEK (ultra-high strength and temperature resistance) materials to meet diverse requirements from standard pneumatic applications to demanding chemical fluid transfer
- 【Threads and Pipe Diameters】Features two threaded interface options: 1/4-28 UNF and M6, compatible with rigid tubing ranging from 1.6mm to 3.2mm outer diameter for flexible application
- 【Easy Installation】Features a direct-insert design that simplifies installation steps and significantly boosts assembly efficiency
- 【Professional-Grade Sealing Performance】Specifically engineered for rigid tubing, delivering sealing performance far exceeding standard ferrule fittings. Ideal for precision instruments, pneumatic components, and laboratory equipment
- 【Precision Machining】The inner wall and tapered surface undergo precise CNC machining, ensuring a smooth, burr-free finish that guarantees perfect alignment with the tube wall
| Color | Natural |
|---|---|
| Brand Name | Generic |
| Unit Count | 10.0 Count |
| Thread Size | 1/4-28UNF |
| Manufacturer | TODA Fluid Control |
| Model Number | CC-00155 |
| Material Type | Polyetheretherketone (PEEK), Polypropylene, Polyvinylidene Fluoride (PVDF) |
| Connector Type | PP, for 2.0-3.2mm |
| Exterior Finish | Molded |
| Item Dimensions | 0.71 x 0.32 x 0.32 inches |
| Included Components | flangeless fitting |
